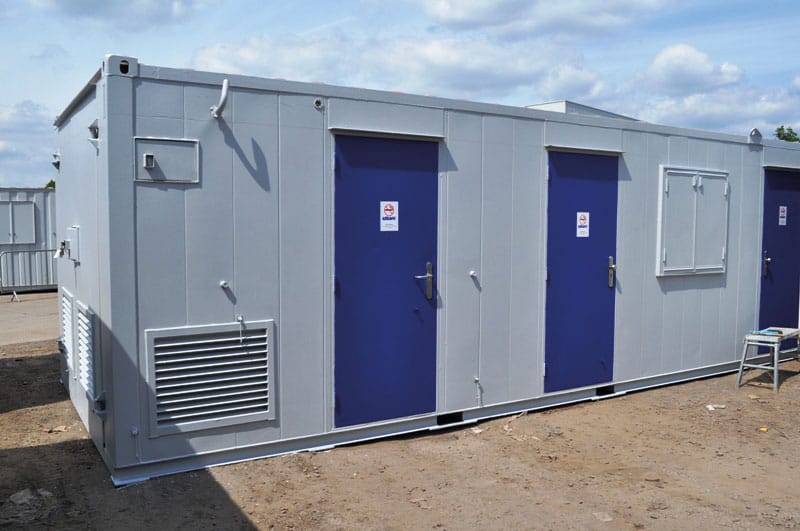

Temporary Site Canteens & Offices

Anti Vandal Portable Offices have a plastic coated (plastisol) exterior that not only looks good, but also provides a low maintenance easy clean finish. Internally, the white polyester coated walls create a light, clean environment with a wipe down finish also making it easier to keep clean. The Portable Canteen is suitable for a variety of applications, including temporary canteen facilities and on-site event catering, or as part of a combination of cabins such as offices, toilets and changing rooms, creating a multi-functional site set up. As an option you can also hire canteen tables and seating from us.

Category:

Please note that these drawings are of our Elite range of units and are shown as an example. Some of our layouts may vary to the drawings shown here.

  • 5ft Fluorescent Light Fitting c/w 360 degree P.I.R.
  • 2 x 13amp Double electric sockets
  • 2kw Convector Heater c/w Timer
  • 63amp External Isolator & 32A Single Phase Appliance Inlet
  • Consumer unit – 63amp RCD c/w MCB’S on Split Board
  • Insulated steel external door with 11-Point Locking System and Euro Cylinder c/w Door Closer
  • Double Glazed windows with Anti-Vandal Steel Shutter c/w Hold Open Catches
  • 2mm Heavy Duty PolyFlor Vinyl floor

Please note that these drawings are of our Elite range of units and are shown as an example. Some of our layouts may vary to the drawings shown here.

  • 2x 5ft fluorescent light fitting c/w 360 degree P.I.R.
  • 7 x 13amp double sockets
  • 1x 2kw convector heater c/w timer
  • 5 Litre under sink immersion water heater
  • 63amp external isolator & 32A single phase appliance inlet
  • Consumer Unit – 63amp RCD c/w MCB’S on split board
  • 600mm sink with drainer, 2-door base unit & worktop
  • Insulated steel door with 11-Point locking system and Euro Cylinder c/w door closer
  • Double glazed windows with Anti-Vandal steel shutter c/w hold open catches
  • 2mm heavy duty PolyFlor vinyl flooring

Please note that these drawings are of our Elite range of units and are shown as an example. Some of our layouts may vary to the drawings shown here.

  • 2x 5ft fluorescent light fitting c/w 360 degree P.I.R.
  • 7 x 13amp double sockets
  • 2x 2kw fan heater
  • 63amp external isolator & 32A single phase appliance inlet
  • Consumer Unit – 63amp RCD c/w MCB’S on split board
  • Dry Room Seating – fixed benching columns with hat & coat hooks above
  • Insulated external steel door with 11-Point locking system and Euro Cylinder c/w door closer
  • Double glazed with Anti-Vandal steel shutter c/w hold open catches
  • 2mm heavy duty PolyFlor vinyl flooring

Please note that these drawings are of our Energy Saving range of units and are shown as an example. Some of our layouts may vary to the drawings shown here.

Canteen

  • 3x 5ft fluorescent light fitting c/w 360 degree P.I.R.
  • 1x 2kw convector heater c/w timer
  • 2 x 13amp Double electric sockets
  • 600mm sink with drainer, 2-door base unit & worktop
  • 2x fixed 4-seat pods c/w table top
  • Generator control – remote Start / Stop control

Drying Area

  • 1x 16W 2D enclosed fitting
  • 1x 2kw fan heater
  • Fixed benching with hat & coat hooks above

Toilet

  • 1x 16W 2D enclosed fitting c/w 360 degree P.I.R.
  • 1x 2kw fan heater
  • Toilet pan c/w low level dual-flush cistern; large wash hand basin c/w timed non-concussive taps

Plant Room

  • 1x 16W 2D enclosed fitting c/w 360 degree P.I.R.
  • 11.2kw Cabinmaster Generator (270 litre fuel tank)
  • Fresh water storage – 700 Litre water tank
  • Effluent storage – 800 Litre effluent tank

General

  • Water Heating – 15 Litre under sink immersion water heater located in canteen area
  • Water Handling – Boostamatic water pump located in toilet
  • Effluent Handling – Sanibest Macerator (Certain Units Only)
  • Double glazed windows with Anti-Vandal steel shutter.
  • Insulated external steel doors with 11-point locking system and Euro Cylinder c/w door closers
  • 2mm heavy duty PolyFlor vinyl flooring
