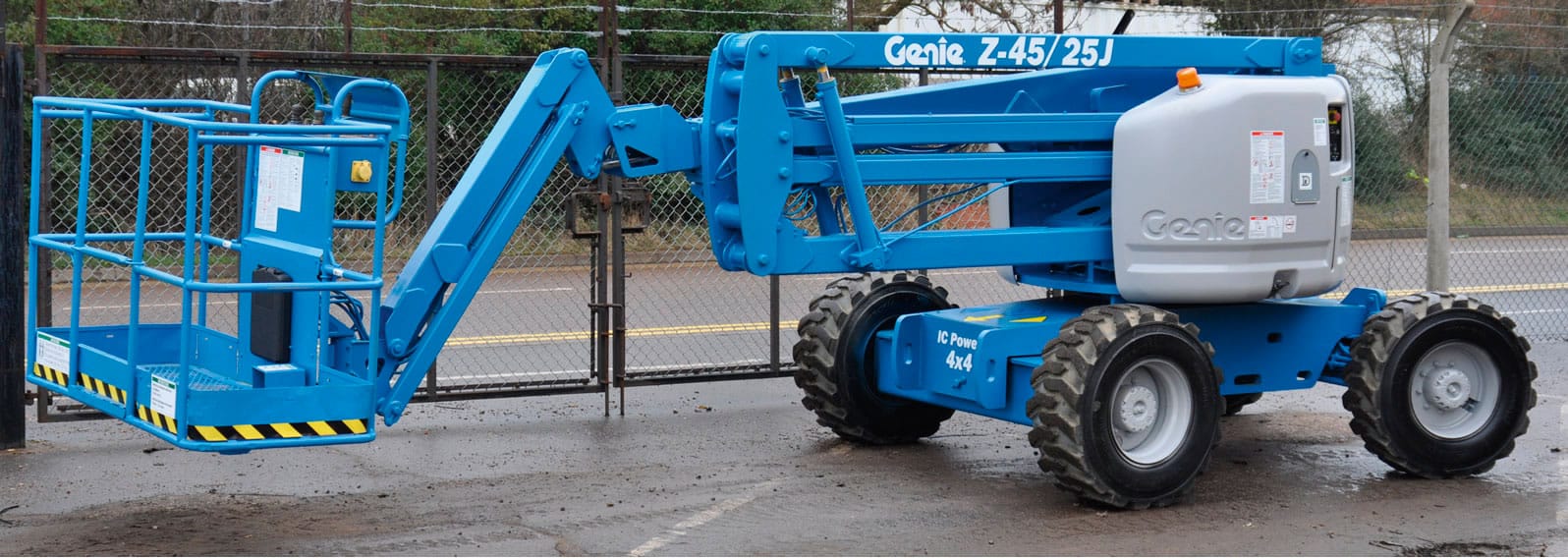

Genie Z45 Diesel Boom Lift
48V DC machine with diesel powered generator acting as 100 amp battery charger make this boom ideal for indoor and outdoor applications
• 6 ft (1.83 m) inside turning radius delivers excellent maneuverability
• 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
• Ascent and descent along a vertical plane with or without boom retraction or extension
• Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
• Self-leveling platform features a 180° hydraulic rotation for Z-45/25 models and a 160° hydraulic rotation for Z-45/25J models
• Drive enabled system informs operator when the drive and steer functions will move opposite controller movements
• 6 ft (1.83 m) inside turning radius delivers excellent maneuverability
• Self-leveling platform features 180° powered rotation for precise positioning and easy operation.
Working Height* 51 ft 6 in (15.87 m)
Width 5 ft 10.3 in (1.79 m)
Horizontal Reach 25 ft (7.62 m)
Up & Over Clearance 23 ft 1 in (7.04 m)
Lift Capacity 500 lbs (227 kg)
