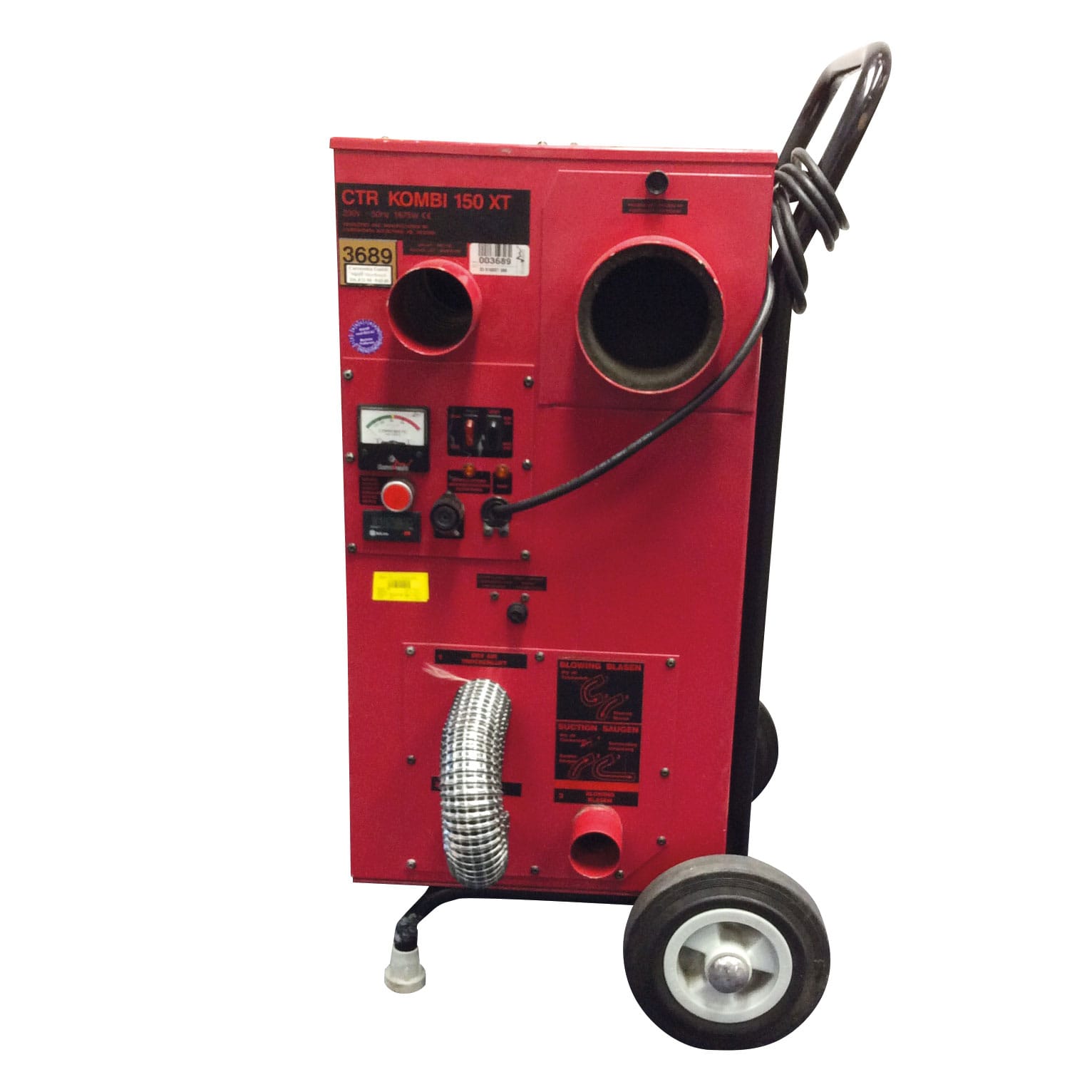

Corroventa Kombi CTR K150XT Turbine Dehumidifier

Dryer and turbine in the same unit, extremely low noise level. In our efforts to stay a step ahead we have developed our Combi series. It is very simple to switch between pressure and suction drying of a layered construction. Installation is simple, fast and very reliable.

Category:

The machine has an integrated Corromatic flow meter that shows the airflow through the machine. The largest machine in the Combi series. Drying capacity for 2 smaller rooms or one large. Has the capacity to dry several concrete beams at the same time.

Three colour codes indicate the airflow: Green OK: Yellow can be permitted for short periods: Red The airflow in the construction must be checked and adjusted. For example, more inlets and more outlets etc.

The machine has connections for a  hygrostat when drying in sensitive environments and a mode for ventilation only. Can be used for drying layered constructions up to 40 m² (mineral wool) or up to 30 m² (foam)* During suction drying where there may be releasable water the turbine must be used in combination with the 3-Stage Filter system for water separation.

  • Capacity +20°C, 40% RF 35 l/day
  • Dry air volume 150 m3/hour
  • Pressure 260 mbar
  • Power supply 230 V / 50 Hz
  • Power consumption 1600 W
  • Noise level 44-49 dB
  • Weight 49 kg
  • Size incl. cart H 930 x B 470 x D 550 mm
