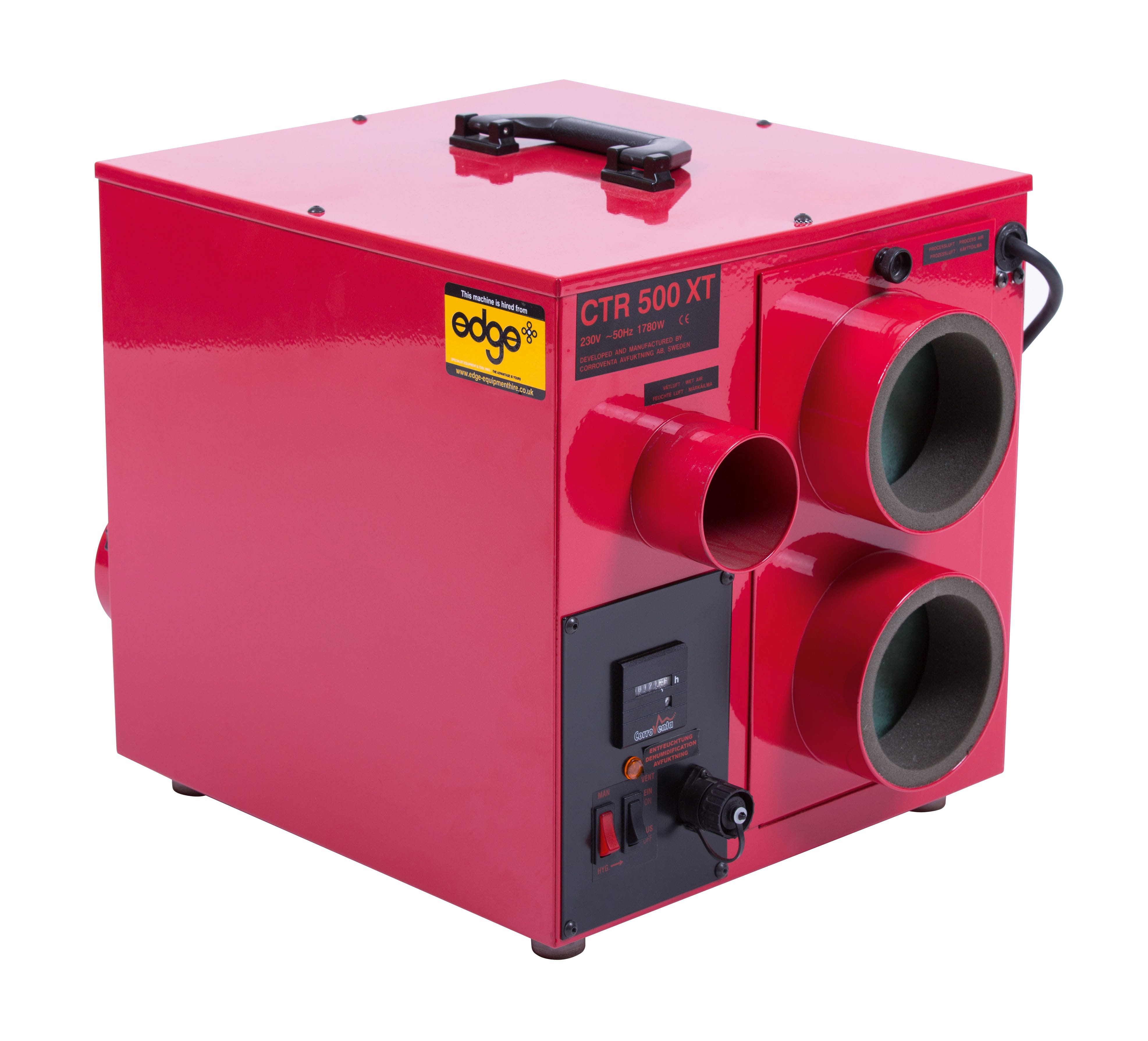

Corroventa Dryer CTR 500XT
CTR 500XT is the pocket dynamo in the series with impressive capacity for its size and weight. With two Ø 100 mm and three Ø 50 mm dry air outlets the CTR 500XT offers the very widest range of variation and possibilities for use. When drying layered constructions the CTR 500XT can be connected to all our turbine models. For maximum capacity the dryer is used together with CTR T150XT and CTR T200S.
- Capacity +20°C, 60% RF 38 l/day
- Dry air volume 500 m3/hour
- Dry air outlet Ø 2×100 mm, 3×50 mm
- Wet air outlet Ø 75 mm
- Power supply 230 V / 50 Hz
- Regeneration air heater 1500 W
- Power consumption 1780 W
- Real consumption 1500 W
- Noise level (3 m) 62 dB
- Weight 21 kg
- Size width 550 mm
- Size length 480 mm
- Size height 930 mm
