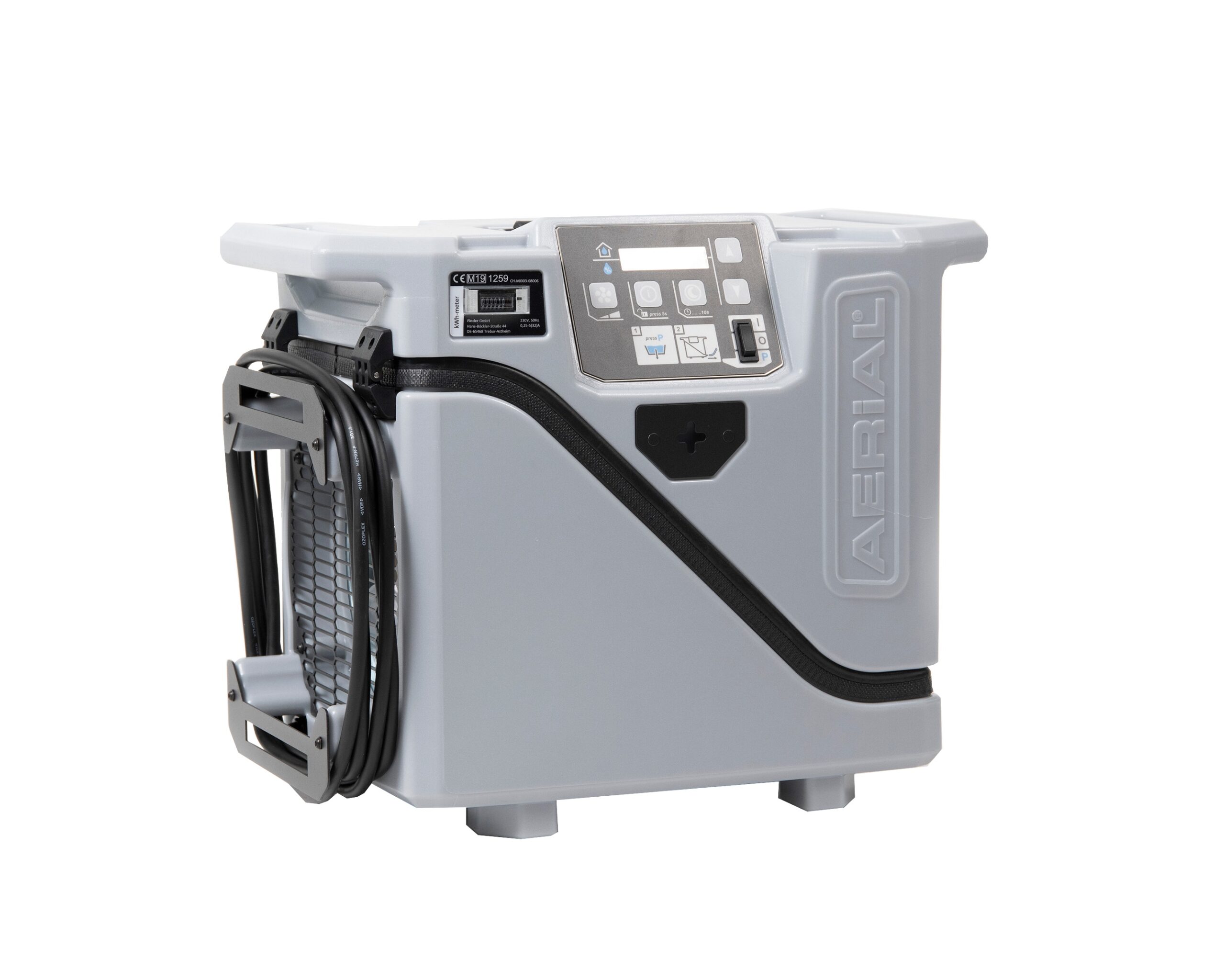

AD 20 Refrigerant
Features
- Shock and impact-resistant roto moulded housing
- Stackable unit wide choice of grip and carry options
- Easy to open, clean and maintain. Housing with integrated cable loop
- Blue-Dry®-Technology for particularly energy-saving operation even at low humidity and temperatures
- 2 speed energy efficient EC fan
- Automatic hot gas defrost
- Additional power socket (fuse safe)
- Calibrated kWh-counter (acc. To MID) currentless reading
- Built-in condensate water pump
- CC6 Electronic with Smart Icon Control (AD 20 only)
Applications
- Water damage restoration
- Flood drying
- Preservation
- Sewage treatment, waterworks
- Basements and cellars
- Storage and archives
Optional accessories AD 20
- Spare filter
- Belt for lashing-system
Optional accessories AD 40
- Condensate drain hose
- Pump kit
- Spare filter
- Hose clip for discharge hose
| Specifications | Units | AD 20 (Provisional Data) | AD 40 |
|---|---|---|---|
| Capacity (30°C/80% RH) | l/24h | 17 | 35 |
| Air flow (speed I/II) | m³/h | 225/300 | 300/400 |
| Operating temperature range | °C | 1-34 | |
| Operating humidity range | % RH | 35-99 | 35-99 |
| Max. power consumption | W | 340 | 520 |
| Power supply | V/Hz | 230/1ph/50 | 230/1ph/50 |
| Sound level | dB(A) | – | 53 |
| Condensate drain | mm | 15 x 1.5 | 15 x 2 |
| Product size (h x w x d) | mm | 420 x 320 x 500 | 580 x 390 x 450 |
| Weight | kg | 18 | 25 |
