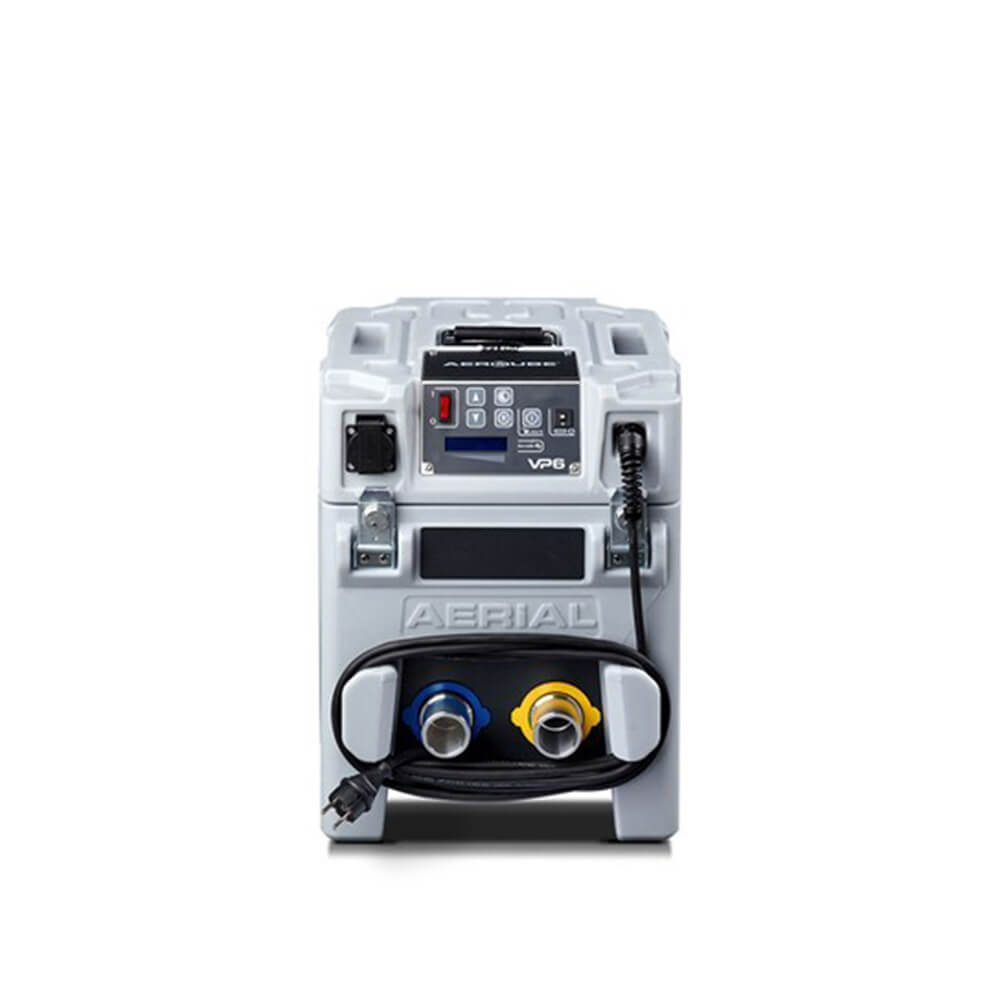

Aerial VP6 Turbine
The noise box VP 6 is light, versatile and powerful. The use of a brushless, variable turbine reduces the weight of the VP 6 by up to 50% compared with conventional noise boxes with lateral channel blowers. The multi-stage control of this unit provides precise power adjustment. The VP 6 reduces the amount of equipment needed as it replaces up to four different individual units.
Advantages
-
Aerial VP turbines are available with your logo and in your colour – minimum order quantity, 15 pieces
-
Energy consumption is displayed via the calibrated, non-resettable, MID-compliant energy meter
-
High performance brushless 4-stage turbine
-
Integrated silencer to minimise noise
-
4-stage turbine allows for a tailored solution
-
Designed for drying insulated constructions, voids, and cavities
-
Coarse filter at suction side
-
Integrated Night Mode provides quieter running in occupied spaces
-
Cavity drying up to 70m2
-
Light weight (15kg)
Key Features
-
Easy to open, clean and maintain
-
Intelligent eDRY® control
-
Encapsulated control panel
-
Ergonomically friendly manual handling features
-
Can be combined with all products from the AERCUBE® series
-
Fix points for AERCUBE® lashing system
-
The system is designed to deliver optimum performance using 50mm hoses with alternative 38mm hose fittings optional
-
Built-in safety thermostat to protect against restrictions and over-heating
-
Integrated cable reel with magnetic plug holder
-
Auxiliary plug connection for powering other devices such as dryers and fans
-
Integrated F7 filter to protect turbine from dust ingress
-
Extremely robust, shock-resistant and UV-resistant plastic housing
-
5 year warranty on rotomoulded housing
Control / Operation
-
Easy-to-use electronics with full-text display
-
Display device status and operation hours
-
Bar graph and multi-colour LED to show the counter pressure
-
On/Off-switch
-
Appliance socket with fuse (max. 8A)
-
Keylock
-
Safety shut down in case of overload
| Specifications | Units | VP 6 |
|---|---|---|
| Blower type |
Brushless high-performance turbine blower
|
|
| Air flow (free blowing) |
Speed:m²/m³/h
|
1/15/80 – 2/30/140 – 3/50/190 – 4/70/250
|
| Excess pressure |
mbar
|
270
|
| Low pressure |
mbar
|
220
|
| Motor power |
W
|
1,280
|
| Operating temperature range |
°C
|
0-38
|
| Power supply |
V/Hz
|
230/1ph/50
|
| Sound level @ 3m |
dB(A)
|
57
|
| Power cord |
m
|
4.5m with plug, heavy-duty version, (H07-cable) with magnet-holder for plug
|
| Protection class |
IP44
|
|
| Product size (h x w x d) |
mm
|
507 x 390 x 455
|
| Weight |
kg
|
15
|
